• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Remote Keyless Entry
• Seat trim, Cloth

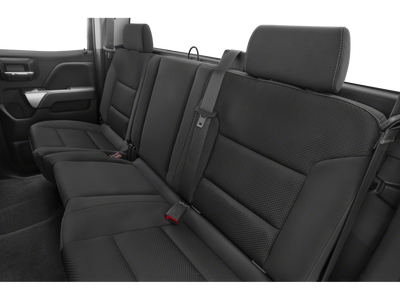

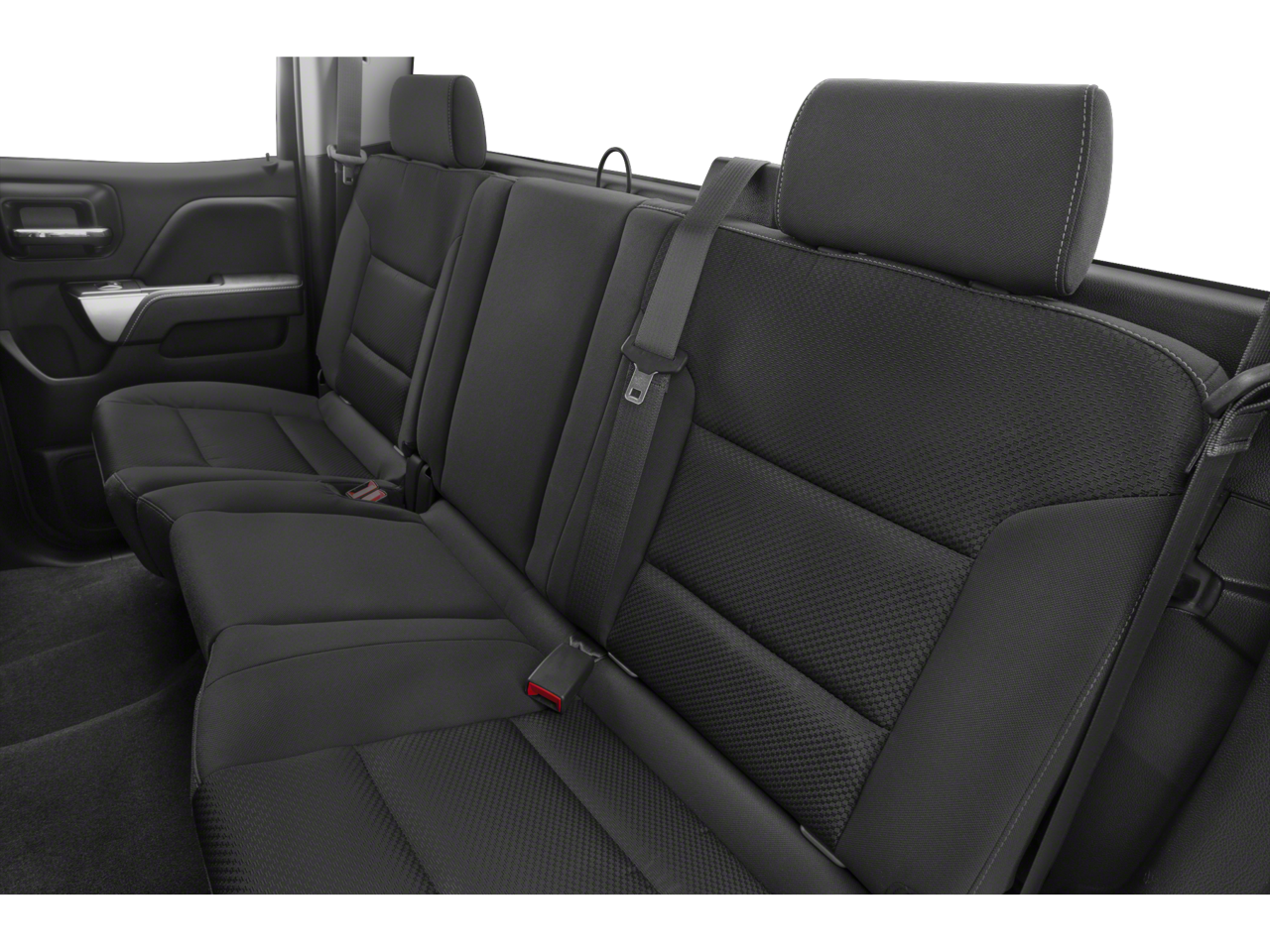

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Single-slot CD/MP3 player
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls

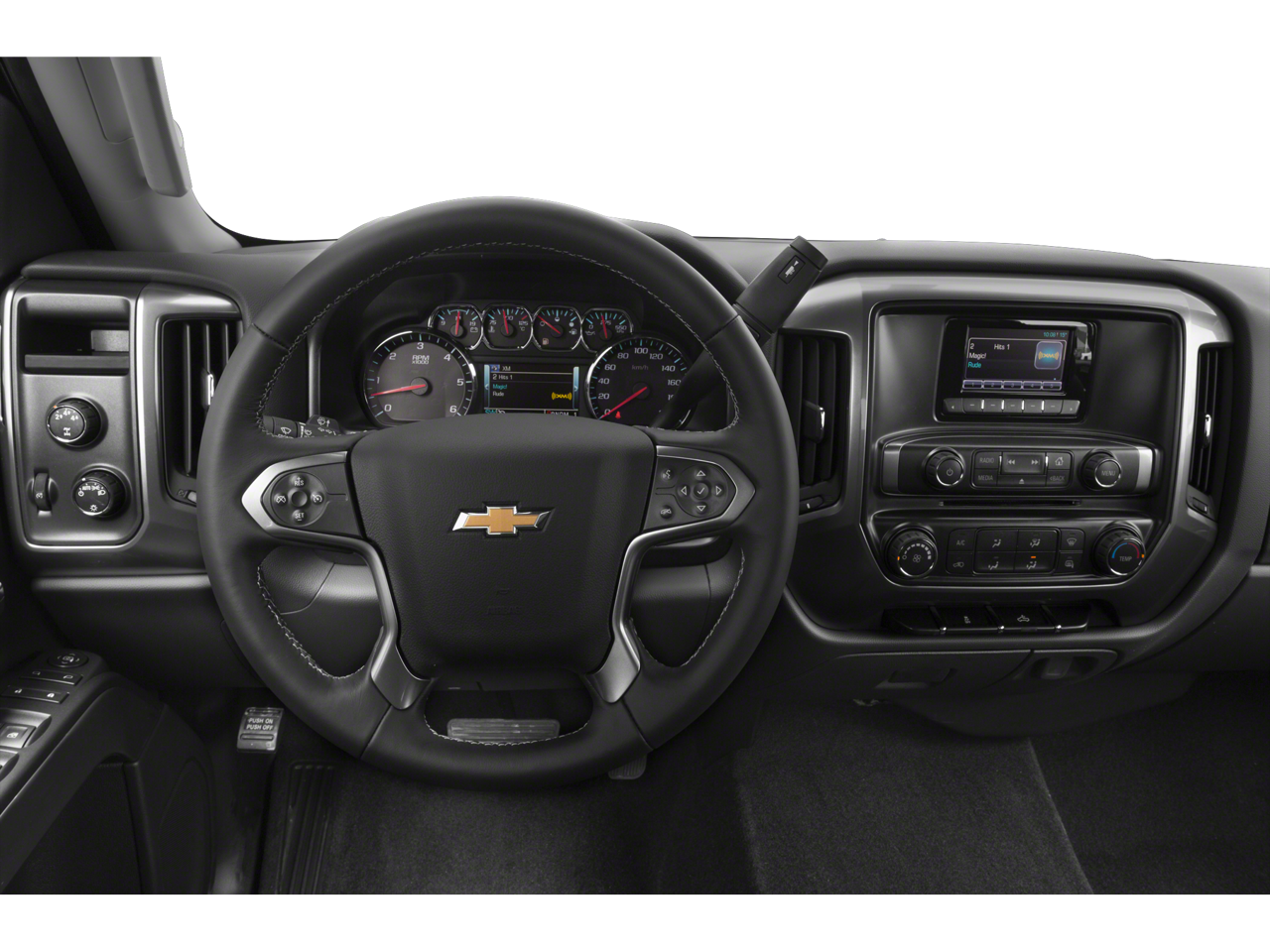

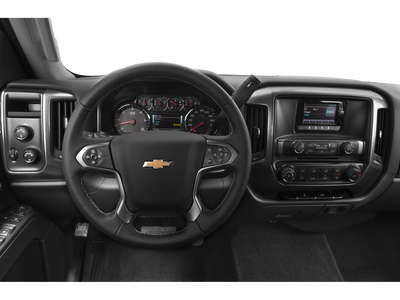

• Steering wheel, leather-wrapped with audio and cruise controls
• Visors, driver and front passenger illuminated vanity mirrors

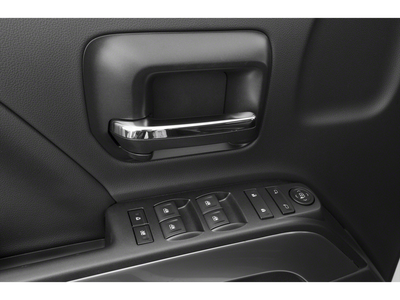

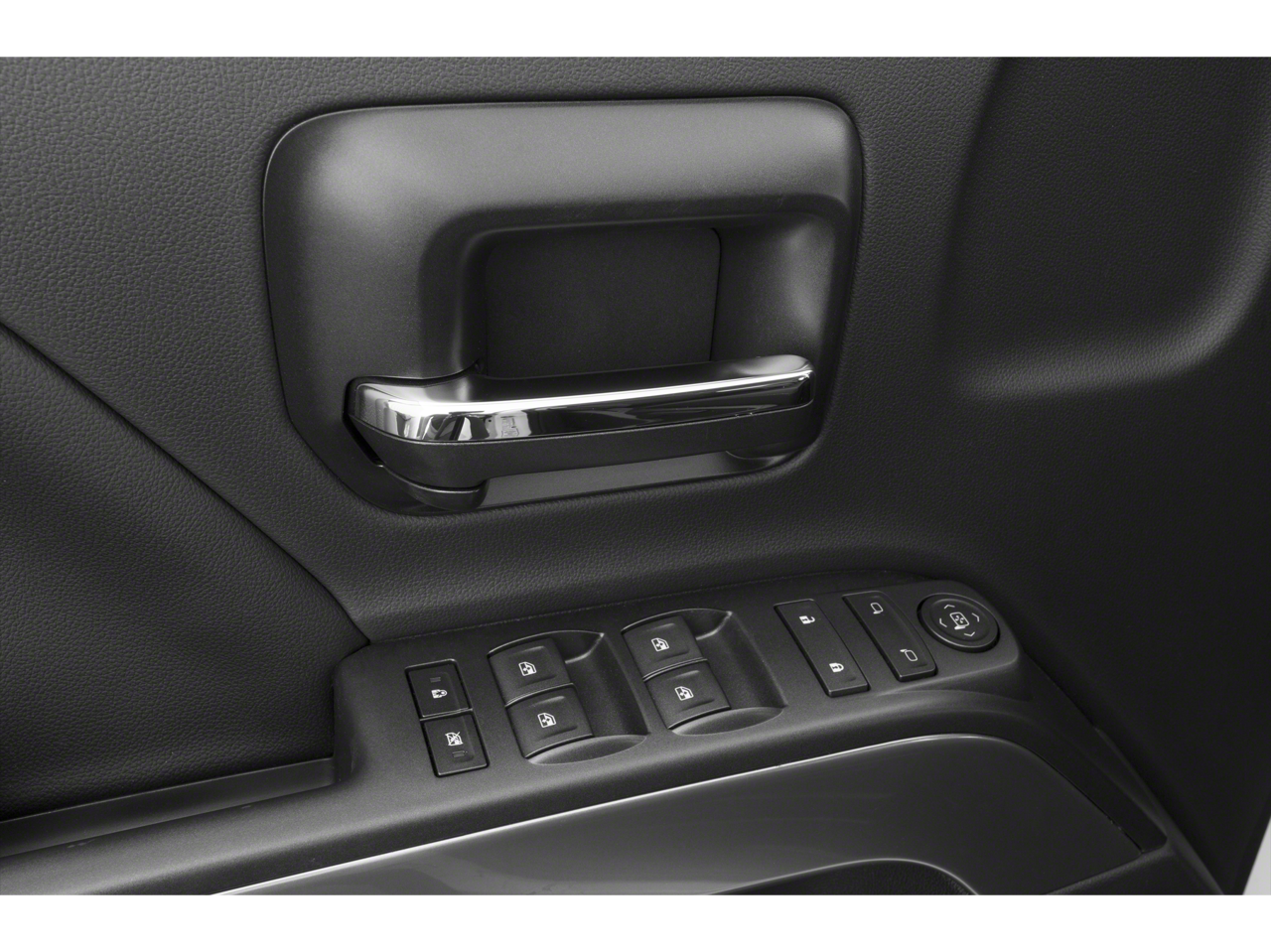

• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bag deactivation switch, frontal passenger-side
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

Lt Preferred Equipment Group

• Standard Equipment

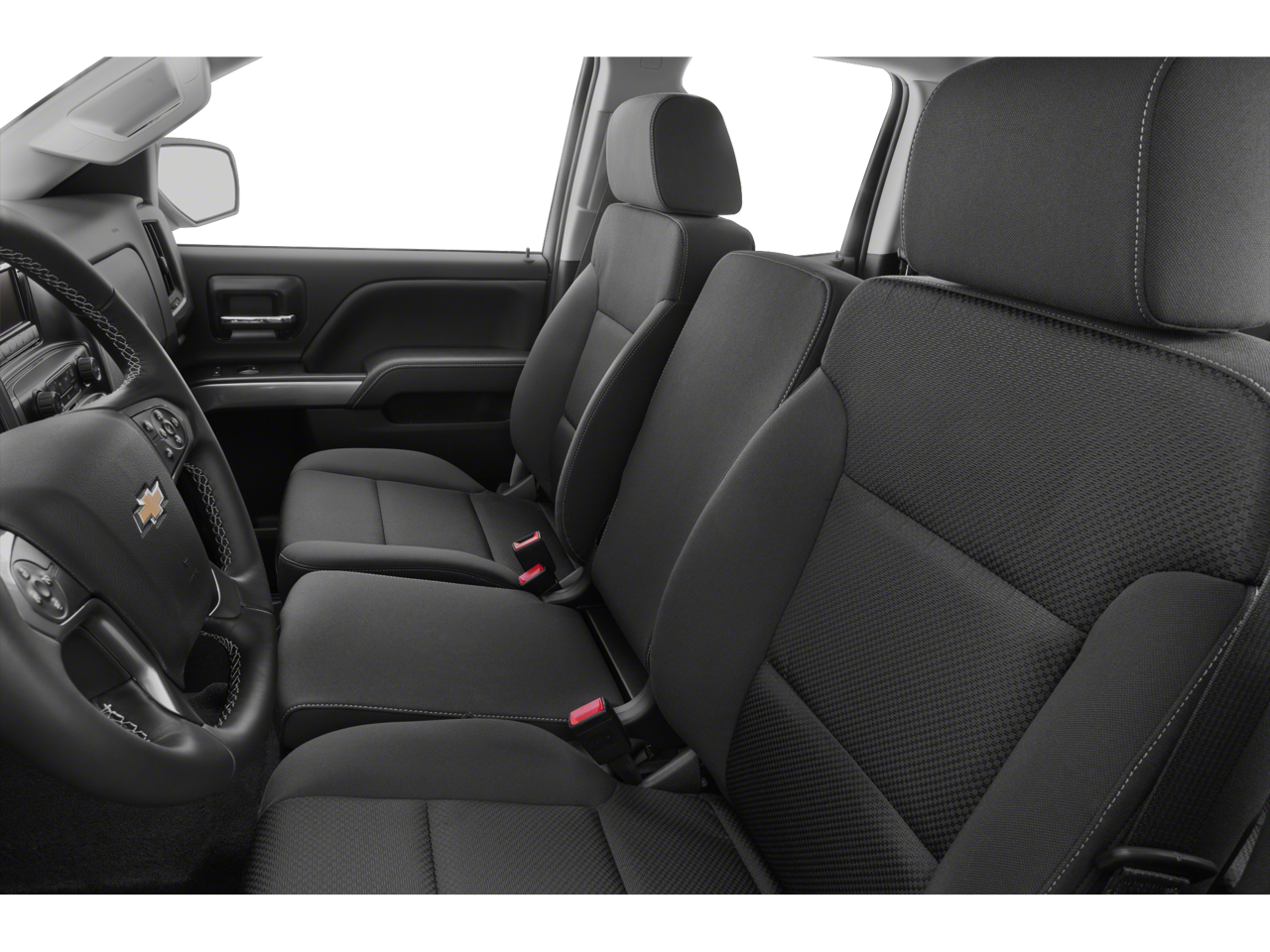

Seats, Front 40/20/40 Split-Bench, 3-Passenger. Available In Cloth Or Leather. Includes Driver And Front Passenger Recline With Outboard Head Restraints And Center Fold-Down Armrest With Storage. Also

• Manually Adjustable Driver Lumbar

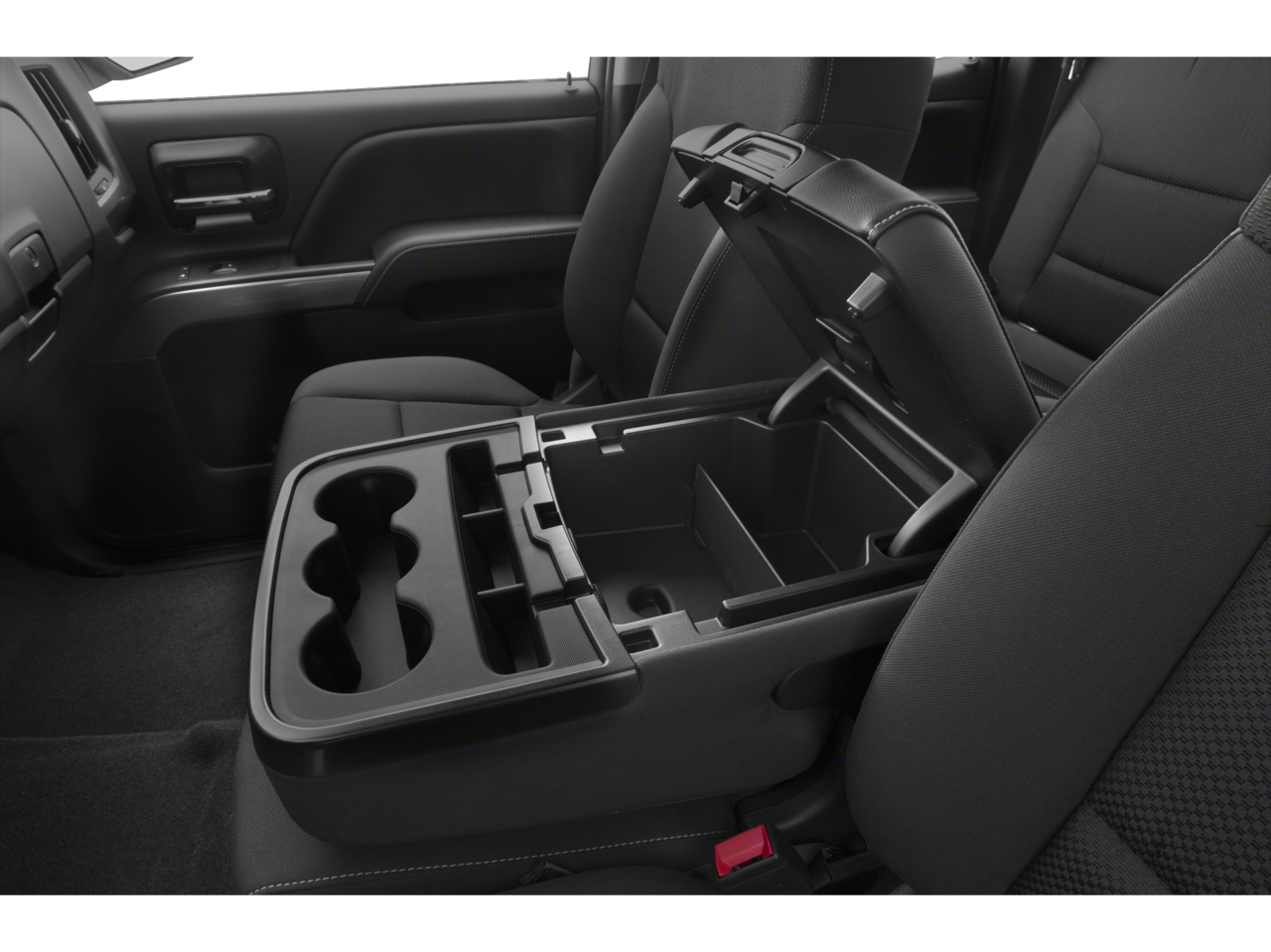

• Lockable Storage Compartment In Seat Cushion
• Storage Pockets. (Std)

Underbody Shield, Frame-Mounted Shields

• Front Underbody Shield Starting Behind Front Bumper And Running To First Cross-Member
• Protecting Front Underbody
• Oil Pan
• Differential Case And Transfer Case

Additional Packages

• Air Conditioning
• Dual-Zone Automatic Climate Control
• Deep Ruby Metallic
• Defogger
• Rear-Window Electric
• Engine
• Vortec 6.0L Variable Valve Timing V8 Sfi E85-Compatible
• Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (360 Hp [268.4 Kw] @ 5400 Rpm
• 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) With (E63) Fleetside Pickup Box; (322 Hp [240.1 Kw] @ 4400 Rpm
• 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) With (Zw9) Pickup Box Delete (Std)
• Fog Lamps
• Front
• Halogen
• Gvwr
• 9500 Lbs. (4309 Kg)
• Jet Black
• Cloth Seat Trim
• Lamps
• Smoked Amber Roof Marker
• License Plate Kit
• Front
• Mirror
• Inside Rearview Auto-Dimming
• Paint
• Solid
• Pedals
• Power-Adjustable
• Power Outlet
• 110-Volt Ac
• Rear Axle
• 4.10 Ratio
• Rear Park Assist
• Ultrasonic
• Rear Vision Camera With Dynamic Guide Lines
• Remote Vehicle Starter System
• Seat Adjuster
• Driver 10-Way Power
• Theft-Deterrent System
• Unauthorized Entry
• Trailer Brake Controller
• Integrated

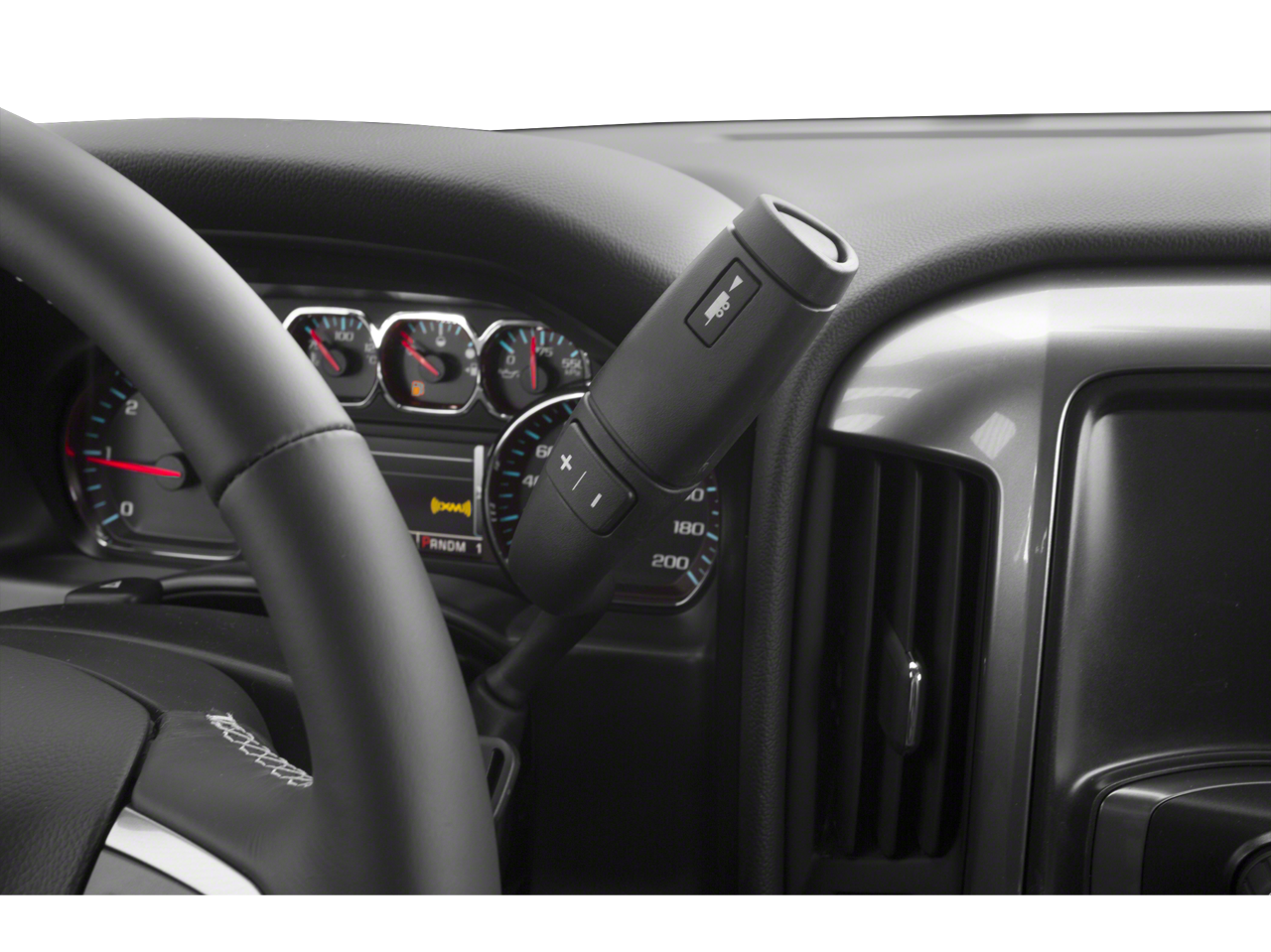

• Transmission
• 6-Speed Automatic
• Heavy-Duty
• Electronically Controlled With Overdrive And Tow/Haul Mode. Includes Cruise Grade Braking And Powertrain Grade Braking (Std)
• Universal Home Remote

• REMOTE VEHICLE STARTER SYSTEM
• UNIVERSAL HOME REMOTE
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable).
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• POWER OUTLET 110-VOLT AC
• DEEP RUBY METALLIC
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER is located at the rear of the pickup box attached to the rear frame cross member

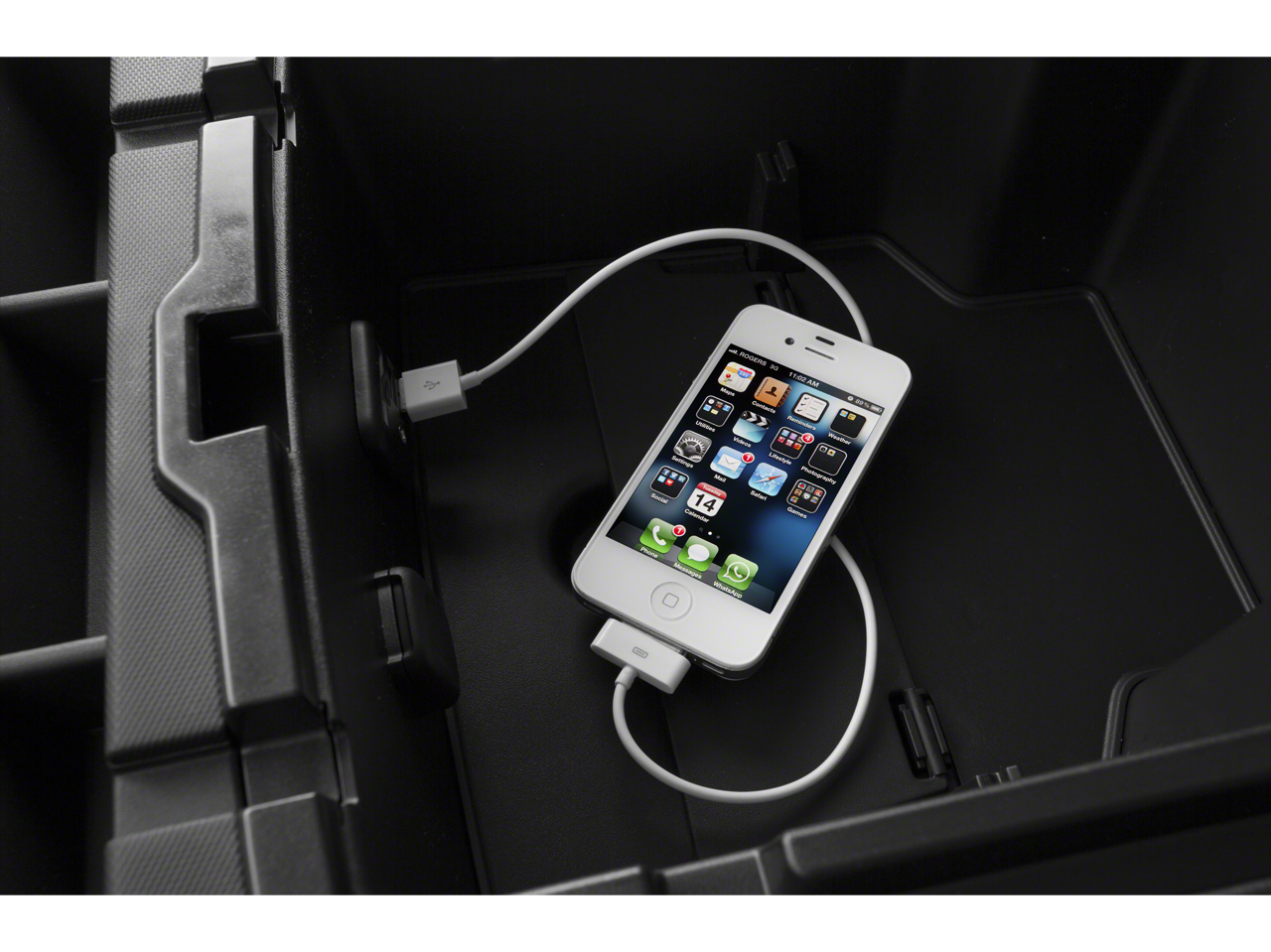

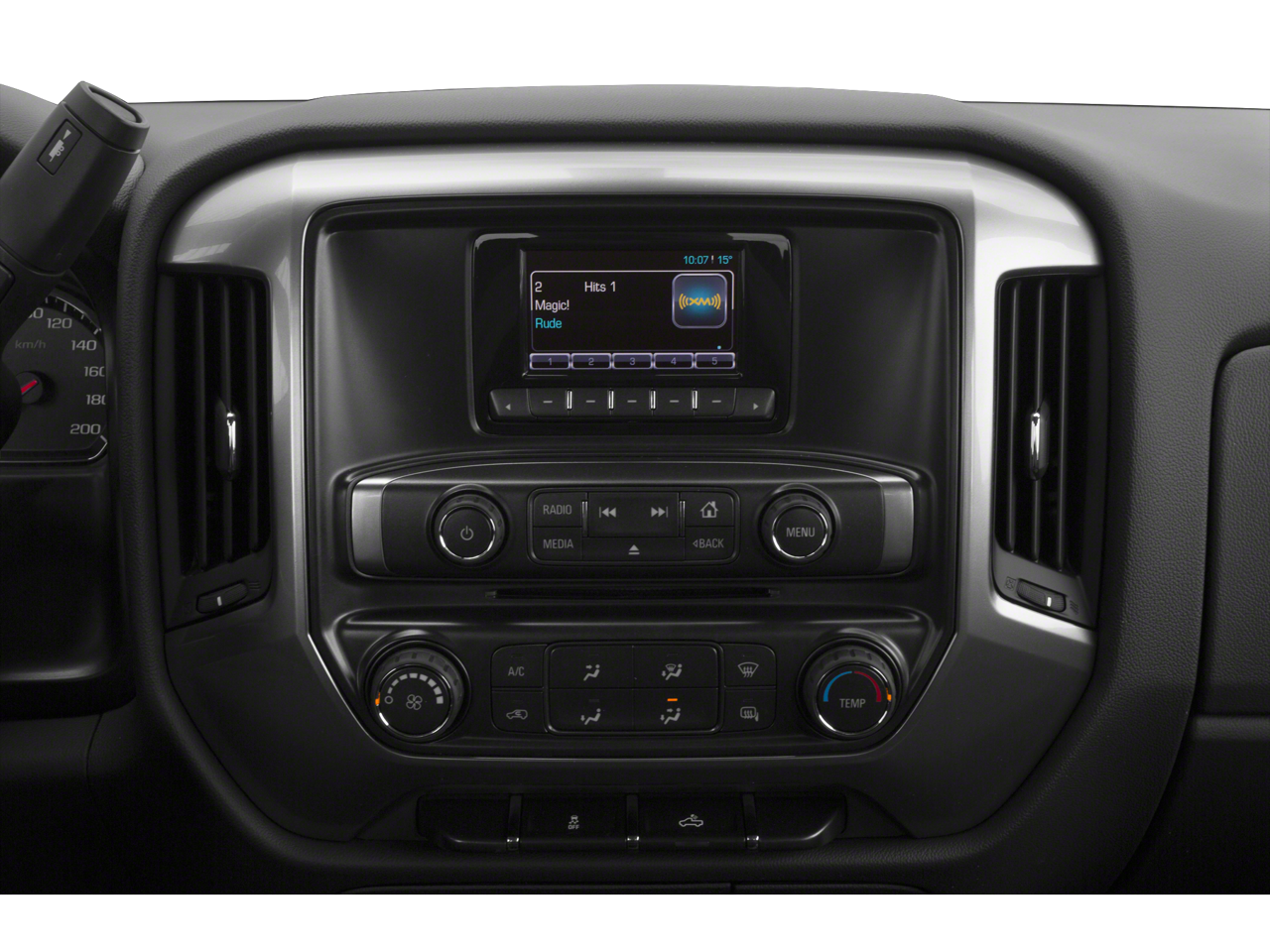

• CHEVROLET MYLINK AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH WITH AM/FM/SIRIUSXM USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio voice-activated technology for radio and phone and 4 customizable themes
• GVWR 9500 LBS. (4309 KG)

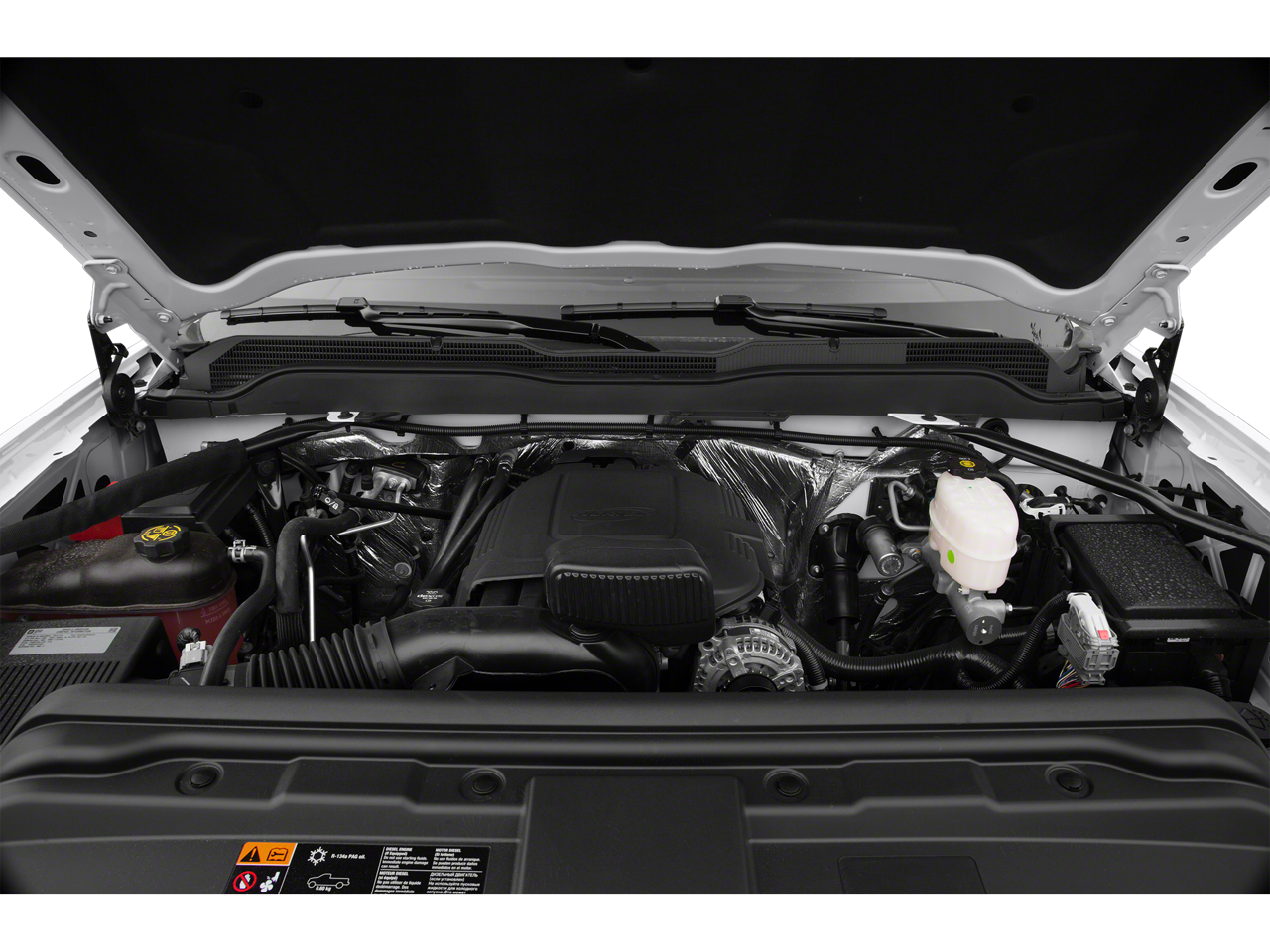

• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• PEDALS POWER-ADJUSTABLE
• LT CONVENIENCE PACKAGE includes (AG1) driver 10-way power seat adjuster with (AZ3) bench seats only (BTV) Remote vehicle starter system (UVC) Rear Vision Camera (C49) rear-window defogger (KI4) 110-volt power outlet and (T3U) fog lamps (Includes (CJ2) dual-zone automatic climate control (IO5) Chevrolet MyLink 8" Diagonal Color Touch audio system.
• WHEELS 17" (43.2 CM) MACHINED ALUMINUM includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• AIR CONDITIONING DUAL-ZONE AUTOMATIC CLIMATE CONTROL
• REAR VISION CAMERA with dynamic guide lines
• LAMPS SMOKED AMBER ROOF MARKER
• REAR PARK ASSIST ULTRASONIC
• Z71 PACKAGE OFF-ROAD includes twin tube Rancho brand shocks (JHD) Hill Descent Control (NZZ) Underbody Shield. Also includes brushed metal Z71 door sill plate unique Z71 gauge cluster unique finish interior trim plates unique lower bumper appearance unique grille design with Z71 badge and Z71 pickup box decals (Includes (T3U) fog lamps (G80) rear locking differential (JL1) trailer brake controller and (Z82) trailering package.
• JET BLACK CLOTH SEAT TRIM
• FOG LAMPS FRONT HALOGEN
• LT PLUS PACKAGE includes (UG1) Universal Home Remote (UD7) Rear Park Assist (JF4) power adjustable pedals and (C49) rear-window defogger
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• THEFT-DETERRENT SYSTEM UNAUTHORIZED ENTRY
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Four Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• Satellite Radio
• Split Bench Seat
• Driver Adjustable Lumbar
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Leather Steering Wheel
• Floor Mats
• Power Windows
• Keyless Entry
• A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Navigation from Telematics
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3685
• Curb Weight - Rear (lbs): 2670
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.00
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.11
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary

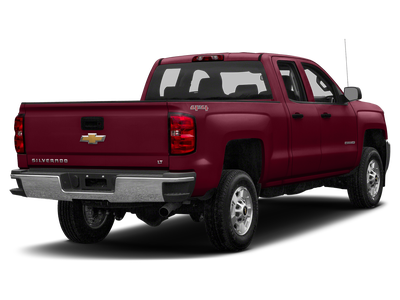

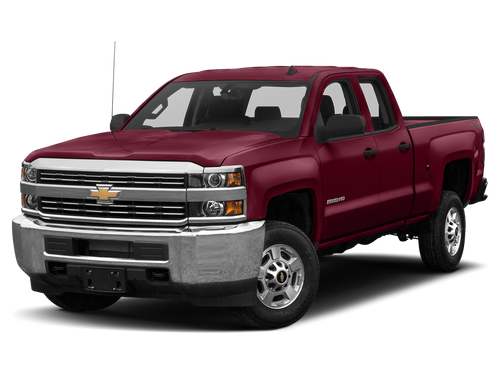

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
